Graphics Example Treatments

Plot items

Shows an overview of the elementary plot items: plot points, plot lines, plot rects, plot pies, plot texts, and a plot axis.

Screenshot
Zoom
Smiley

Demonstrates the use of the plot box and uses plot items as plot points (eyes), plot lines (mouth) and plot pies (whole face).

Screenshot
Zoom
Box plot demo

Demonstrates how to create a box plot with a plot graph containing plot rects. Futhermore this demo displays plot axis.

Screenshot
Zoom

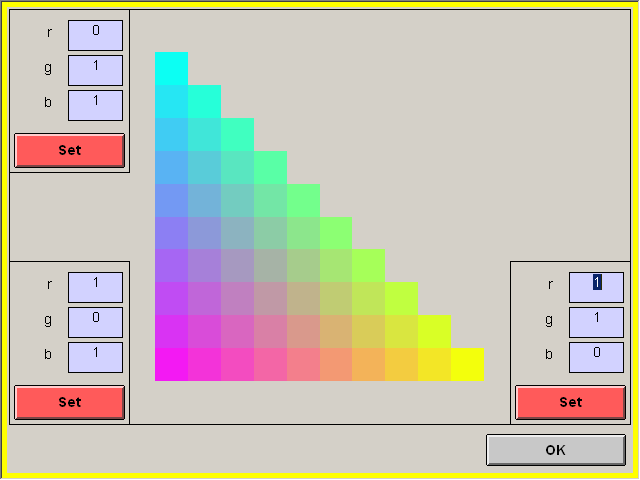

Color triangle demo

Demonstrates a nested plot graph containing plot rects.

Screenshot
Zoom
Move point demo

Demonstrates how the click by a subjecst can be mapped into a new position of a plot item. how the click is handles is defined in the plot input. The yellow circle shows a plot point.

Screenshot
Zoom
Select link demo

Demonstrates an object can be selected. What can be selected is defined in the plot input. The graph is defined with a plot graph containing plot lines.

Screenshot
Zoom

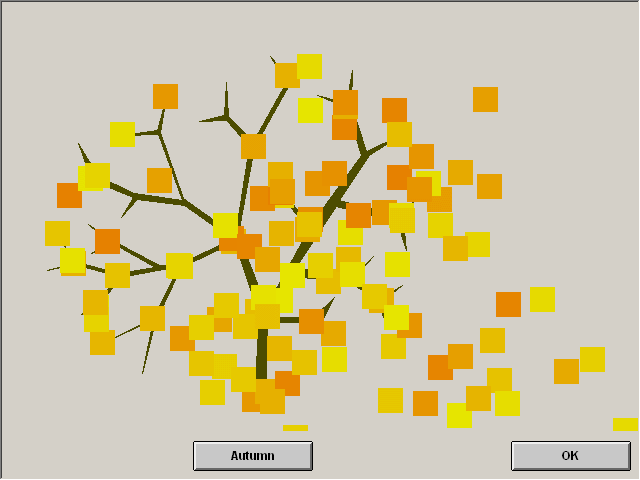

Animate tree demo

Demonstrates how plot items can be animated with the later statement.

Screenshot
Zoom

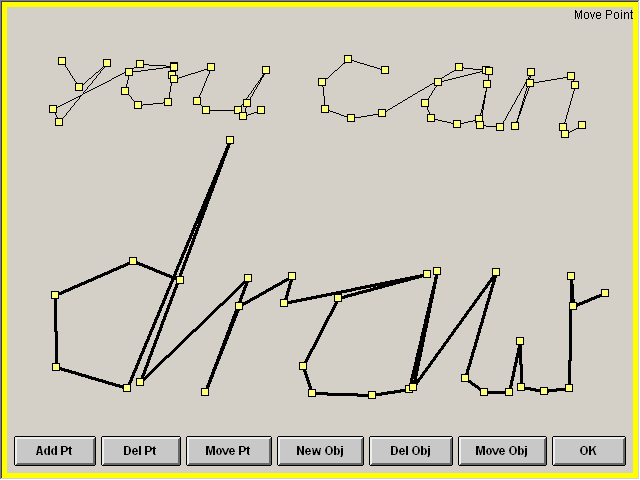

z-Draw

Demonstrates how plot items and plot input can be used to define a graphical editor.

Screenshot
Zoom
